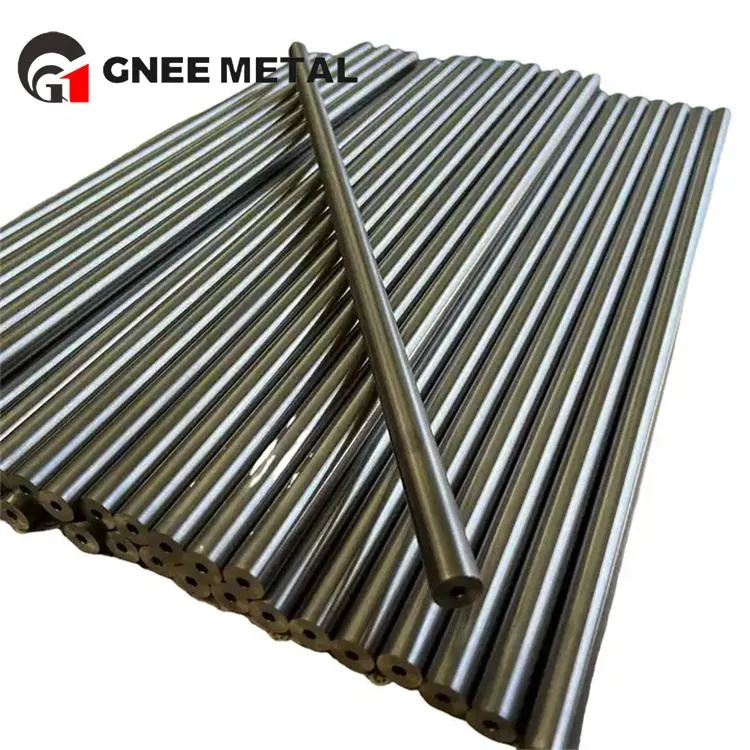

Tungsten Nickel Copper W-Ni-Cu Alloy
Tungsten-nickel-tooj liab alloy yog hais txog cov chav kawm tseem ceeb ntawm tungsten-raws li hnyav alloys, tungsten nyob rau hauv qhov sib ntxiv ntawm npib tsib xee, tooj liab alloys thiab nyob rau hauv lub hauv paus ntawm kev sib ntxiv ntawm lwm yam hlau ntsiab nyob rau hauv lub alloy, ntxiv nickel-tooj liab piv feem ntau yog 3. :2. Ntxiv nickel-tooj liab piv feem ntau yog ...
Hauj lwm lawm
Tungsten-nickel-tooj liab alloy yog hais txog cov chav kawm tseem ceeb ntawm tungsten-raws li hnyav alloys, tungsten nyob rau hauv qhov sib ntxiv ntawm npib tsib xee, tooj liab alloys thiab nyob rau hauv lub hauv paus ntawm kev sib ntxiv ntawm lwm yam hlau ntsiab nyob rau hauv lub alloy, ntxiv nickel-tooj liab piv feem ntau yog 3. :2. Ntxiv nickel-tooj liab piv feem ntau yog 3: 2.
Ntxiv nickel-tooj liab piv (qhov hnyav) feem ntau yog 3: 2. thiab tungsten-nickel-hlau alloy sib piv, vim tooj liab tsis muaj npib tsib xee, hlau ua kom sintered tungsten, yog li ntawd, nws cov sintered ntom yog me ntsis qis, lub zog thiab plasticity ntawm cov neeg pluag, feem ntau tsis nqa tawm kev kho cua sov thiab deformation ua.
Khoom Description
Tungsten Nickel Copper Alloy (W-Ni-Cu Alloy) Specification:
| ASTM B 777-15 | Tsis-magnetic Chav Kawm 1 |
Tsis-magnetic Chav kawm 2 |
Tsis-magnetic Chav kawm 3 |
Sib nqus Chav Kawm 1 |
Sib nqus Chav kawm 2 |
Sib nqus Chav kawm 3 |
Sib nqus Chav Kawm 4 |
| TIAB SA 7725E | Hom 1 Chav Kawm 1 |
Hom 1 Chav kawm 2 |
Hom 1 Chav kawm 3 |
Hom 2 Chav Kawm 1 |
Hom 2 Chav kawm 2 |
Hom 2 Chav kawm 3 |
Hom 2 Chav Kawm 4 |
| MIL-T-21014 Rev D | Chav Kawm 1 | Chav kawm 2 | Chav kawm 3 | Chav Kawm 1 | Chav kawm 2 | Chav kawm 3 | Chav Kawm 4 |
| SAE-AMS-T -21014 | Chav Kawm 1 | Chav kawm 2 | Chav kawm 3 | Chav Kawm 1 | Chav kawm 2 | Chav kawm 3 | Chav Kawm 4 |
| Tungsten (wt%) | 90 | 93 | 95 | 90 | 92.5 | 95 | 97 |
| Binder | Ni/Cu | Ni/Cu | Ni/Cu | Ni/Fe | Ni/Fe | Ni/Fe | Ni/Fe |
| g/cm3 | 17.10 | 17.60 | 17.90 | 17.10 | 17.50 | 18.10 | 18.50 |
| lb/ib 3 | 0.62 | 0.64 | 0.65 | 0.62 | 0.63 | 0.65 | 0.67 |
| Hardness, HRC | 24 | 24 | 24 | 27 | 24 | 24 | 25 |
| Mpa | 675 | 650 | 680 | 645 | 645 | 660 | 660 |
| ksi ua | 100 | 95 | 100 | 95 | 95 | 95 | 95 |
| Mpa | 805 | 830 | 805 | 875 | 900 | 910 | 915 |
| ksi ua | 116 | 120 | 116 | 126 | 130 | 131 | 132 |
Cov alloys no tsis yog-ferromagnetic, kuj zoo hluav taws xob thiab thermal conductivity, feem ntau siv nyob rau hauv ib co tshwj xeeb yuav tsum tau ntawm lub ntees, xws li gyroscope rotor thiab lwm yam uas yuav tsum tau nyob rau hauv qhov kev txiav txim ntawm lub magnetic teb ntawm kev ua hauj lwm ntawm cov cuab yeej thiab instrumentation qhov chaw; high-voltage hluav taws xob hloov hluav taws xob, hluav taws xob tiv tauj, nrog rau qee yam ntawm cov electrodes siv rau kev ua hluav taws xob, thiab lwm yam.
