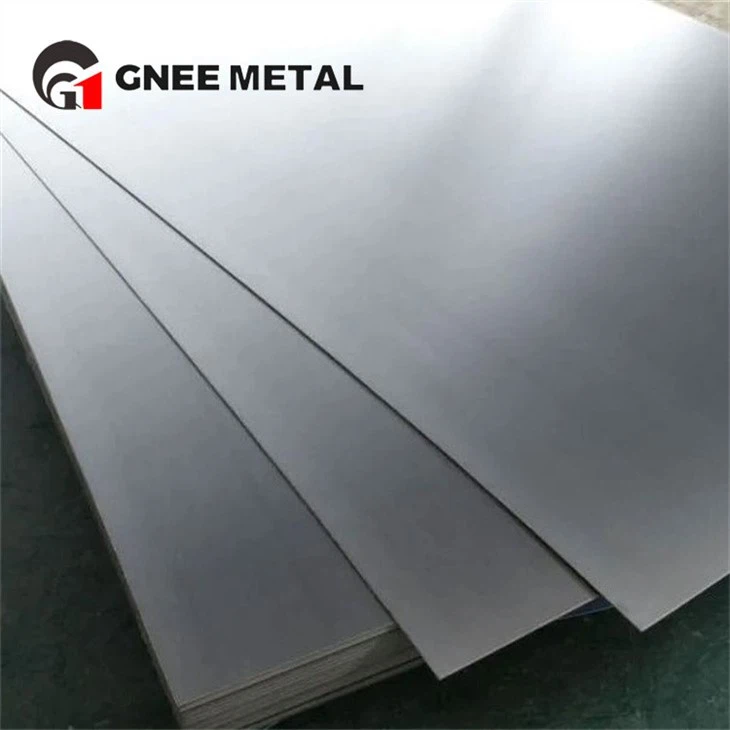

AMS 4914 Titanium Daim Ntawv
AMS yog hais txog Aerospace Material Specifications, uas suav nrog cov ntaub ntawv thiab cov qauv kev ua haujlwm siv nyob rau hauv aerospace teb. Cov khoom ntawm GNEE's AMS 4914 Titanium yog Titanium Alloy 15-3-3-3, uas tseem hu ua Ti-15V-3Cr-3Al-3Sn.
Hauj lwm lawm
AMS 4914 Titanium yog weldable thiab tuaj yeem muaj hnub nyoog kom ua tiav lub zog siab. Nws kuj yog qhov tsis txaus ntseeg rau ib puag ncig xws li dej ntsev. Ntxiv mus, Ti-15-3-3-3 qhia tau hais tias muaj kev sib piv tsis tshua muaj kev taw qhia, thiab nws cov khoom siv annealed yog qhov tsis txaus ntseeg rau cov txheej txheem hloov pauv.
Kev cob qha titanium khoom tsum - GNEE
Chemical Composition Requirements
|
Lub ntsiab |
Qhov hnyav% |
|
V |
14.0-16.0 |
| Cr |
2.5-3.5 |
| Sn | 2.5-3.5 |
| Al | 2.5-3.5 |
|
O |
Tsawg dua lossis sib npaug rau 0.13 |
|
C |
Tsawg dua lossis sib npaug rau 0.05 |
|
N |
Tsawg dua lossis sib npaug rau 0.05 |
| H | Tsawg dua lossis sib npaug rau 0.015 |
|
Fe |
Tsawg dua lossis sib npaug rau 0.25 |
| Tseem tshuav | Tag nrho 0.4 |
Lub cev muaj zog ntawm AMS 4914 Titanium
| Lub cev muaj zog | Metric | Lus Askiv |
| Qhov ntom | 4.76 g/m³ | 0.172 lb/in³ |
Ti-15-3-3-3 Titanium Alloy yog cov khoom siv titanium uas tau txias kom ua tiav cov khoom ntawm xoom qhov tseem ceeb ntawm titanium. Nws cov thev naus laus zis ua haujlwm siab dua li cov titanium ntshiab. Nws muaj lub zog zoo dua, qaug zog ua haujlwm thiab ib puag ncig corrosion dua li cov ntshiab titanium thiab lwm yam titanium alloys. Nws muaj cov duab zoo plasticity thiab yog nyob rau hauv ib qho kev daws teeb meem. Nws elastic modulus yog qis, txog 80GPa, me ntsis siab dua cov elastic modulus ntawm titanium-nickel zoo nco alloy (txog 60GPa). Nws muaj qhov zoo elasticity rov qab (piv txwv li, lub koov hlau tsis deform mus tas li tom qab khoov mus ntev), tsis tshua muaj zog, yooj yim rau kev tsim, thiab tuaj yeem khoov lossis tsim rau hauv cov duab nyuaj yam tsis tau tawg.
Cov iav thav duab ua los ntawm nws ua rau qhov tsis muaj elasticity ntawm lub tuam tsev ntawm ntshiab titanium thav duab. Nws muaj zoo elasticity thiab nco tus yam ntxwv. Tsis tas li ntawd, kev ua haujlwm thiab vuam ntawm titanium alloy zoo heev. Cov iav thav duab ua los ntawm nws muaj ntau cov duab thiab cov qauv, thiab nws yog cov khoom siv los ua cov iav.
Yog li ntawd, titanium alloy tsom iav thav duab tau dhau los ua qhov chaw nruab nrab-rau-siab-kawg kho kom zoo nkauj thiab nyiam zam hauv cov teb chaws tsim kho xws li Europe thiab Tebchaws Meskas. Nws tau raug siv nyob rau hauv kev tsim cov high-end titanium iav thav duab xov hlau thiab ko taw xov hlau.
