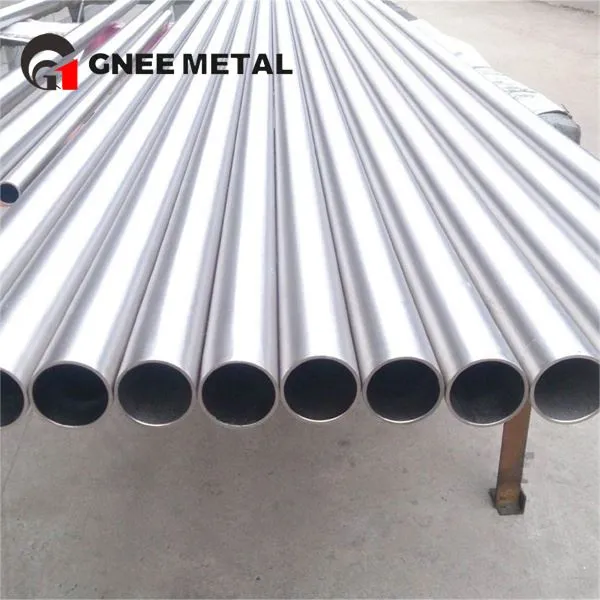

5 Nti Gr23 Titanium yeeb nkab
Sab nraud txoj kab uas hla: 5 nti (li 127 mm).
Phab ntsa Thickness: Cov phab ntsa tshwj xeeb yog nyob ntawm daim ntawv thov, feem ntau muaj ntau yam tshwj xeeb, xws li {{0}}.125 ntiv tes, 0.188 ntiv tes thiab lwm yam.
Length: tuaj yeem kho raws li qhov xav tau, feem ntau tus qauv ntev lossis tus neeg siv khoom tshwj xeeb ntev.
Hauj lwm lawm
Daim ntawv thov thaj chaw ntawm Gr23 5 nti titanium tubing
Kev lag luam tshuaj: siv nyob rau hauv kev tsim cov reactors, tshav kub exchangers, piping systems thiab lwm yam khoom uas yuav tsum tau corrosion kuj.
Roj thiab roj: rau cov chaw tawm ntug dej hiav txwv, cov khoom siv drilling thiab cov kav dej, tshwj xeeb tshaj yog nyob rau hauv ib puag ncig uas muaj hydrogen sulfide thiab lwm yam corrosive media.
Aerospace: rau cov khoom siv dav hlau, cov khoom siv cav thiab cov tshuab hydraulic vim lawv lub teeb yuag thiab lub zog siab.
Offshore: rau cov khoom siv desalination, shipbuilding thiab marine exploration khoom.
Thawj-chav Gr23 kev kho mob titanium tubing txheej txheem
Mechanical Properties
Cov lus hauv qab no qhia cov khoom siv kho tshuab ntawm qib 23 Ti 6Al 4V ELI alloy.
| Cov khoom | Metric | Imperial |
|---|---|---|
| Lub zog tensile | 860 MPa | 125 000 psi |
| Yield zog | 790mpa ua | 115 000 psi |
| Poisson tus ratio | 0.342 | 0.342 |
| Elastic modulus | 113.8 TSI | 16 510 tzs |
| Shear modulus | 44 0 GPa | 6380 ua |
| Elongation thaum so | 15% | 15% |
| Hardness, Brinell | 326 | 326 |
| Hardness, Khob | 354 | 354 |
| Hardness, Rockwell C | 35 | 35 |
| Hardness, Vickers | 341 | 341 |
Thermal Properties
Lub thermal zog ntawm qib 23 Ti 6Al 4V ELI alloy yog tabulated hauv qab no.
| Cov khoom | Metric | Imperial |
|---|---|---|
| Thermal expansion co-efficient (@20-100 degree /68-212 degree F) | 8.60 µm / m degree | 4.78 µin / hauv degree F |
| Thermal conductivity | 6.70 W/mK | 46.5 BTU in/hr.ft². degree F |
Qhov zoo ntawm Gr23 Titanium Alloy Tubing
Corrosion kuj: Gr23 titanium alloy muaj corrosion kuj zoo heev, tshwj xeeb tshaj yog nyob rau hauv acidic thiab ntsev ib puag ncig.
Kev ua haujlwm siab kub: Nws tseem tuaj yeem tswj xyuas cov khoom zoo ntawm qhov kub thiab txias.
Siab zog: Piv nrog rau lwm cov titanium alloys, Gr23 muaj zog dua thiab hardness.
Weldability: Nws tuaj yeem txuas tau los ntawm ntau txoj kev vuam, xws li TIG vuam, MIG vuam, thiab lwm yam.
Ntim ntawm Gr23 Titanium Round Tubes
Kev ntseeg siab pab neeg muab khoom Gr23 Me Diameter Titanium Tubing
GNEE nyob hauv Anyang City, Henan Xeev, nyob ib sab ntawm Hiav Txwv Yellow, nrog kev thauj mus los yooj yim. Peb cov khoom tseem ceeb muaj xws li titanium raj, titanium rods, titanium foils, titanium xov hlau, titanium daim hlau, thiab lwm yam, uas yog siv dav hauv tsheb, khoom siv hauv tsev, kev tsim kho, kev kho mob, aerospace thiab lwm yam lag luam. Peb cov khoom raug xa tawm mus rau ntau tshaj 150 lub teb chaws thiab cheeb tsam xws li Northeast China, North China, East China, Europe, Middle East, Southeast Asia, Australia thiab lwm yam. Peb zoo siab txais tos cov phooj ywg los ntawm thoob plaws lub ntiaj teb tuaj xyuas peb lub tuam txhab thiab koom tes nrog kev sib koom ua ke mus sij hawm ntev.
Cim npe nrov: 5 nti gr23 titanium yeeb nkab, Tuam Tshoj 5 nti gr23 titanium yeeb nkab manufacturers, lwm tus neeg, Hoobkas
