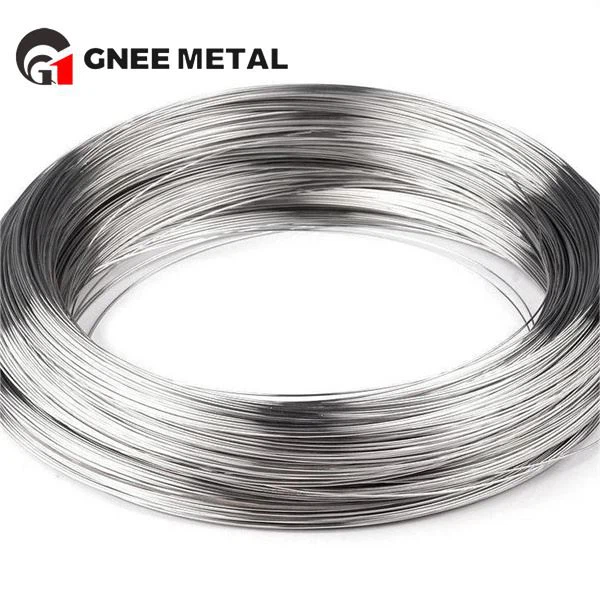

Alloy Titanium Hlau Qib 6
Qib 6 Titanium, uas tseem hu ua Ti-5Al-2.5Sn, muaj kev pabcuam kub ntawm 480 degree (896 degree F), nruab nrab lub zog, thiab zoo heev weldability thiab fabricability. Ti-5Al-2.5Sn alloy muaj oxidation zoo thiab microstructure stability.
Hauj lwm lawm
Qib 6 alloy yog lub zog nruab nrab-hom titanium alloy (Ti-5Al-2.5Sn). Nws tsis tuaj yeem kho cua sov thiab ntxiv dag zog. Nws feem ntau yog siv nyob rau hauv lub xeev annealed thiab muaj zoo tawg toughness ntawm chav tsev kub thiab kub. Lub alloy muaj qhov zoo fusion vuam kev ua tau zoo thiab yog tsim rau tungsten electrode thiab hlau electrode fusion vuam txheej txheem nyob rau hauv inert roj tiv thaiv. Nws tuaj yeem siv los tsim cov khoom xws li casings thiab phab ntsa panels. Lub sijhawm ua haujlwm ntev ntawm cov hlau tuaj yeem ncav cuag 500 degree thiab lub sijhawm ua haujlwm luv luv tuaj yeem ncav cuag 800 degree. TA7ELI alloy nrog qis interstitial impurity ntsiab yog tsim rau siv nyob rau hauv qis kub. Cov khoom lag luam ib nrab ua tiav suav nrog cov phaj, tuav thiab cov nplhaib, thiab lwm yam, thiab tuaj yeem siv los tsim cov castings.
First-class ntshiab titanium hlau txheej txheem
Chemical Composition Requirements
|
Element |
Qhov hnyav% |
| Ti | 89.85 – 94 |
| Al | 4-6 |
| Sn | 2-3 |
| Fe | Tsawg dua lossis sib npaug rau 0.50 |
| O | Tsawg dua lossis sib npaug rau 0.20 |
|
C |
Tsawg dua lossis sib npaug rau 0.10 |
| N | Tsawg dua lossis sib npaug rau 0.030 |
| H | Tsawg dua lossis sib npaug rau 0.015 |
| Lwm yam | tag nrho Tsawg dua lossis sib npaug rau 0.30 |
Lub cev muaj zog
| Cov khoom | Metric |
| Qhov ntom | 4.48g / cm³ |
| Melting Point | Tsawg dua lossis sib npaug li 1590 degree |
Mechanical Properties
| Cov khoom |
|
| Tensile zog | 517 MPa ua |
| Yield zog | 827mpa ua |
| Elastic modulus | 110-125 GPa |
| Shear modulus | 48 GPA |
| Elongation thaum so | 15% |
| Hardness, Brinell | 320 |
| Hardness, Khob | 363 |
| Hardness, Rockwell C | 36 |
| Hardness, Vickers | 349 |
Loj-scale Hoobkas ntau lawm
