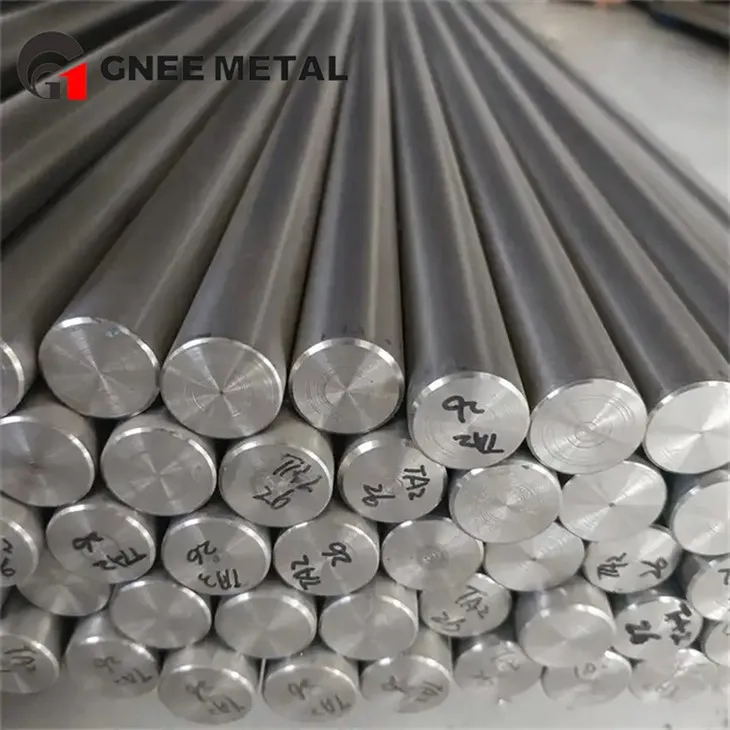

Gr5 Titanium Bar
Khoom siv: CP titanium, titanium alloy
Qib: Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, Gr11, Gr12, Gr16, Gr23 thiab lwm yam
Loj: Dia: 6-115mm, Ntev: 10-6000mm
Txuj: ASTM 348, AMS4928, AMS 4931B, ASTM F67, ASTM F136 thiab lwm yam
Txheej xwm: Kub Rolled (R), Cold Rolled (Y), Annealed (M)
Hauj lwm lawm
Qib 5 Titanium UNS (R56400) Ti-6Al-4V alloy yog cov feem ntau siv titanium alloy hauv alpha-plus-beta pab pawg thiab feem ntau ntawm tag nrho cov titanium alloys. Lub alloy yog castable thiab "raws li cam khwb cia" rau siv nyob rau hauv kev ua si nawv khoom. Cov khoom siv forged yog siv nyob rau hauv aerospace, kev kho mob thiab lwm yam kev siv uas nruab nrab lub zog, zoo zog-rau-qhov hnyav piv thiab zoo corrosion zog yuav tsum tau.
Khoom Description
Ti-6AL-4V (Qib 5, muab faib ua alpha-beta alloy yog qhov siv dav tshaj plaws ntawm lub zog siab titanium alloys. Qib 5 muab nws cov khoom siv zoo thiab qhov ntom ntom (4.42 kg / m3) nrog kev tiv thaiv corrosion zoo heev hauv ntau cov xov xwm. Qib 5 yog tag nrho ntawm cov khoom siv hluav taws xob zoo thiab qhov ntom ntom (4.42 kg / m3) nrog corrosion kuj zoo heev hauv ntau cov xov xwm. 400 ° C (750 ° F).
Cov ntawv thov: Roj thiab roj, marine offshore thiab lub zog tsim hluav taws xob, suav nrog kev lag luam aerospace.
Kev cob qha cov khoom siv titanium - GNEE
| 1. Cov khoom siv tshuaj lom neeg | |||||||||||
| Qib | N(Less tshaj los yog sib npaug) | C ( Tsawg dua los yog sib npaug ) | H(Less tshaj los yog sib npaug) | Fe (Less tshaj los yog sib npaug) | O (Less tshaj los yog sib npaug) | Al(Less tshaj los yog sib npaug) | V (Less tshaj los yog sib npaug) | Pd(Less tshaj los yog sib npaug) | Mo(Less tshaj los yog sib npaug) | Ni(Less than los sib npaug) | Ti |
| GR 1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
| GR 2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
| GR 3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | bal |
| GR 4 | 0.05 | 0.08 | 0.015 | 0.2 | 0.4 | / | / | / | / | / | bal |
| GR 5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| GR 7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| GR9 ua | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| GR 12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| GR 23 | 0.05 | 0.08 | 0.012 | 0.25 | 0.13 | 5.5~6.5 | 3.5~4.5 | bal | |||
| 2.Tensile xav tau | |||||
| Qib | Tensil zog (Ntau dua lossis sib npaug) | Yeild zog (Ntau dua lossis sib npaug)) | Elongation (Ntau dua lossis sib npaug)%) | ||
| ksi ua | Mpa | ksi ua | Mpa | ||
| GR 1 | 35 | 240 | 20 | 138 | 24 |
| GR 2 | 50 | 345 | 40 | 275 | 20 |
| GR 3 | 65 | 450 | 55 | 380 | 18 |
| GR 4 | 80 | 550 | 70 | 483 | 15 |
| GR 5 | 130 | 895 | 120 | 828 | 10 |
| GR 7 | 50 | 345 | 40 | 275 | 20 |
| GR9 ua | 90 | 620 | 70 | 483 | 15 |
| GR 12 | 70 | 483 | 20 | 345 | 18 |
| GR 23 | 120 | 828 | 110 | 760 | 10 |
txog peb
| Yam khoom | Lus Askiv Description | Specifications |
|---|---|---|
| Titanium Tubes / Cov kav dej | Titanium Tubes / Titanium Pipes | OD: 6-250mm, WT: 0.5-30mm, Ntev: txog 12000mm |
| Titanium hlau | Titanium hlau | Txoj kab uas hla: 0.1-8.0mm, Kev Kho: Coil lossis Ncaj |
| Titanium Phaj / Ntawv | Titanium Phaj / Titanium Sheet | Thickness: 0.3-100mm, Dav: 1000-3000mm, Ntev: 2000-6000mm |
| Titanium Bar / Qws | Titanium Bar / Titanium Qws | Txoj kab uas hla: 5-300mm, Ntev: 1000-6000mm |
| Titanium ntawv nyiaj | Titanium ntawv nyiaj | Thickness: 0.05-0.3mm, Dav: 100-600mm |
Pab pawg muaj 5 lub koom haum ua lag luam, nyob hauv Anyang, Tianjin, Hongkong thiab Singapore lub teb chaws thiab cov cheeb tsam. Lub tsev hauv paus yog nyob rau hauv hometown ntawm oracle nyob rau hauv Henan xeev, qhov chaw ntawm lub ntiaj teb no kab lis kev cai cuab yeej cuab tam "Yin Ruin", Anyang nroog, ib tug ntawm yim ancient capitals ntawm Tuam Tshoj. Lub tuam txhab, nruj me ntsis siv 6S kev tswj hwm qhov system, hauv 2016 dhau ISO9001 thoob ntiaj teb kev ua haujlwm zoo ntawv pov thawj, GJB9001B-2009 National tub rog tus qauv kev tswj hwm kev lees paub.
Cim npe nrov: Tuam Tshoj gr5 titanium bar manufacturers, lwm tus neeg, Hoobkas
