ASTM F136 Kev Kho Mob Titanium Alloy Qws
Kev xav tau tshuaj
Elemental muaj pes tsawg leeg%
Nitrogen, max. 0.05
Carton, max. 0.08
Hydrogen, max. 0.012
Hlau, max. 0.25
Oxygen, max. 0.13
Aluminium 5.5-6.50
Vanadium 3 5-4.5
Hauj lwm lawm

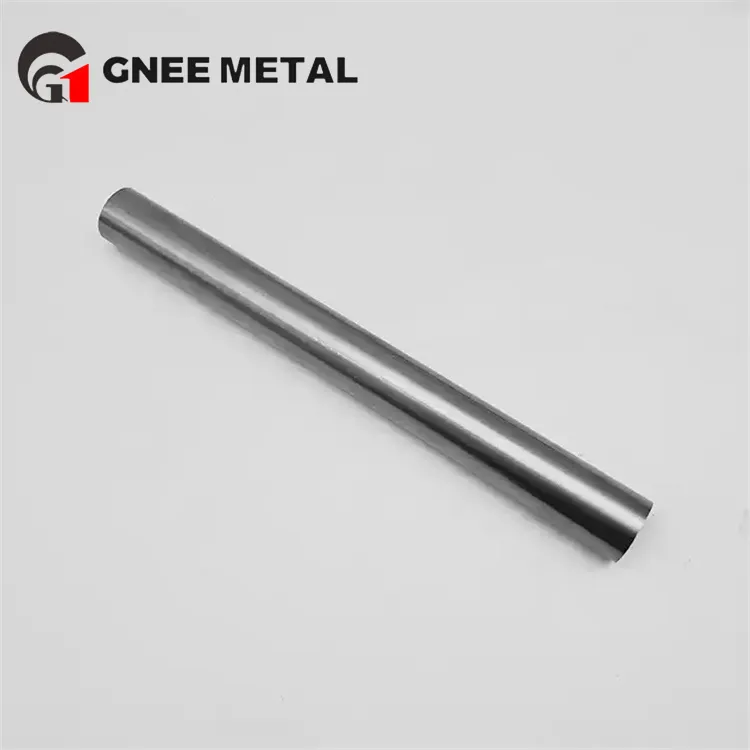

ASTM F136 Ti-6Al-4V ELI Titanium Rods muaj corrosion kuj zoo heev thiab zoo heev biocompatibility. Lawv yog siv los tsim ntau yam khoom siv kho mob, cov pob txha sab hauv, cov pob txha pob txha, cov hniav cog hniav, thiab cov khoom siv prostheses cog rau hauv tib neeg lub cev lossis cov cuab yeej pabcuam kho mob. Cov qauv kev ua haujlwm: ASTM F136; ASTM F67, GB/T 13810-2017.ISO 5832-3.
Khoom Description
ASTM F136 Ti-6Al-4V ELI Titanium Bar rau Kev phais phais yog peb cov khoom tseem ceeb; peb lub tuam txhab zoo heev ntawm kev tsim cov khoom zoo titanium kho mob bar. Peb muab cov khoom lag luam rau Suav thiab txawv teb chaws titanium phais cog cov tuam txhab. Peb tau qhia txog high precision sib tsoo tshuab. Peb tau tsim gr5 titanium alloy thiab titanium alloy rods, siab precision thiab kev ua tau zoo titanium alloy rods nrog tensile zog ntau dua 1100Mpa, kam rau ua h6 thiab metallographic koom haum A3. Tom qab ntau qhov kev kuaj mob, lawv tuaj yeem hloov kho rau cov leeg txha caj qaum tsis muaj lwm yam teebmeem.
Kev cob qha titanium khoom tsum - GNEE
|
Annealed Neeg kho tshuab Cov khoom |
||||
|
Nominal Diameter los yog Distance Nruab Nrab Sib Nqus Sab, in. (mm) |
Tensile zog min, psi (MPa) |
Yield zog (0.2% offset)min, |
Elongation Hauv 4D lossis 4W min,% |
Kev txo qis ntawm cheeb tsam min,% |
|
Hauv qab 0.187(4.75) Thickness lossis txoj kab uas hla |
125 000(860) |
115 000(795) |
10 |
... |
|
0.187(4.75) rau qis dua 1.75(44.45), suav nrog
|
125 000(860) |
115 000(795) |
10 |
25 |
|
1.75 (44.45) rau qis dua 2.50 (63.50), suav nrog
|
120 000(825) |
110 000(760) |
8 |
20 |
|
2.50 (63.50) mus rau 4.00(101.60), incl
|
120 000(825) |
110 000(760) |
8 |
15 |
Loj-scale Hoobkas ntau lawm
txog peb
GNEE Lub Tuam Txhab tau tsim nyob rau xyoo 2008 thiab pib koom nrog kev lag luam txawv teb chaws hauv xyoo 2015. Nrog rau 8 xyoo ntawm kev tsim khoom thiab muag khoom. Nrog ntau xyoo ntawm kev tsim khoom thiab cov chaw tsim khoom ywj pheej, peb tuaj yeem muab koj cov khoom lag luam customized. Lub caij no, peb koom tes nrog ntau lub tuam txhab nto moo, uas tuaj yeem muab koj cov khoom zoo ntawm cov hlau zoo. Peb muaj txog li 200 tus neeg ua haujlwm thiab yuav loj hlob mus ntxiv rau yav tom ntej. Peb txhua tus neeg ua haujlwm tau cog lus los muab koj cov khoom lag luam thiab cov kev pabcuam zoo dua. Peb tau cog lus los muab cov khoom zoo tshaj plaws thiab cov kev pabcuam rau koj, thiab peb yuav muab cov nqi zoo dua rau koj thiab kev nyab xeeb thiab kev thauj mus los sai sai.GENN muaj kev ntseeg siab. Peb tos ntsoov yuav ua haujlwm nrog koj.
Cim npe nrov: astm f136 kho mob titanium alloy pas nrig, Tuam Tshoj astm f136 kho mob titanium alloy pas nrig manufacturers, lwm tus neeg, Hoobkas
