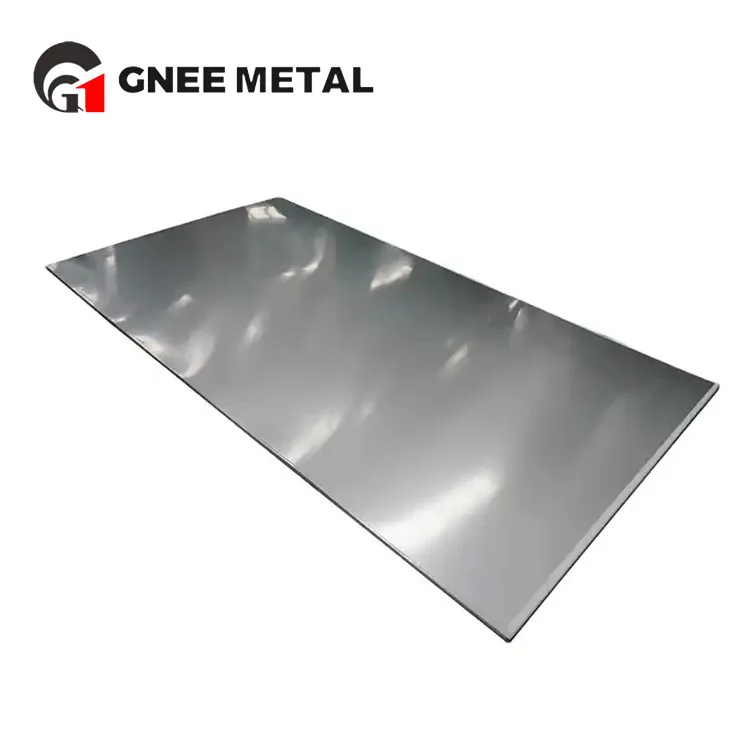

Ti-6Al-4V 3mm Titanium Sheet Cardiology
Hauv plawv plawv, 3-mm-thick Ti-6Al-4V (tseem hu ua qib 5 titanium alloy) titanium ntawv feem ntau yog siv los tsim ntau yam kev cog paj plawv thiab khoom siv.
Hauj lwm lawm
Ti-6Al-4V titanium alloy daim ntawv tsis muaj teeb meem rau tib neeg lub cev thiab tsis ua rau muaj kev tsis haum lossis tshuaj lom. Titanium alloys pom zoo corrosion kuj nyob rau hauv ib puag ncig sab hauv thiab tswj cov txheej txheem kev ncaj ncees nyob rau lub sij hawm ntev.Lub modulus ntawm elasticity ntawm Ti-6Al-4V titanium hlau phaj yog ze rau ntawm tib neeg cov pob txha, uas pab txo qis kev ntxhov siab-tiv thaiv cov teebmeem thiab txhawb kev kho cov nqaij mos.
Professional Ti-6Al-4V Titanium Sheet Supplier--GNEE
|
Khoom |
Yam tsawg kawg nkaus |
Tus nqi |
|
Tensile zog MPa (ksi) |
897 (130) |
1000 (145) |
|
0.2% Pov Thawj Stress MPa (ksi) |
828 (120) |
910 (132) |
|
Elongation Tshaj 2 nti% |
10 |
18 |
|
Txo hauv cheeb tsam% |
20 |
|
|
Elastic Modulus GPa (Msi) |
|
114 (17) |
|
Hardness Rockwell C |
|
36 |
|
Specified Khoov Radius<0.070 in x Thickness |
|
4.5 |
|
Specified Bend Radius >0.070 hauv x Thickness |
|
5.0 |
|
Welded Khoov Radius x Thickness |
6 |
|
|
Charpy, V-Notch Impact J (ft.lbf) |
|
24 (18) |
Daim ntawv thov rau Ti-6Al-4V Titanium Alloy Sheet
Lub plawv li qub: Ti-6Al-4V titanium alloy feem ntau yog siv rau hauv kev tsim cov qauv tsim rau cov neeg kho tshuab lub plawv li qub, muab kev ua haujlwm ntev thiab biocompatibility.
Cardiac Pacemakers thiab Defibrillators: Ti-6Al-4V Titanium alloy yog siv los tsim cov pacemaker thiab defibrillator vaj tse, muab biocompatibility zoo thiab corrosion kuj.
Ventricular Assist Devices (VAD): Ti-6Al-4V titanium alloy yog siv los tsim lub cev twj tso kua mis thiab lwm yam tseem ceeb rau VADs, ua kom cov cuab yeej ntseeg tau thiab kav ntev.
Cov khoom loj ntawm Ti-6Al-4V muaj titanium ntawv hauv Tshuag
Pab neeg ntseeg siab heev muab Ti-6Al-4V daim ntawv kho mob titanium
Lub tuam txhab tau txais iso9001: 2015 kev tswj hwm kev tswj hwm kev lees paub, iso14001: 2015 ib puag ncig kev tswj hwm daim ntawv pov thawj, ISO 45001: 2018 kev ua haujlwm kev noj qab haus huv thiab kev tswj hwm kev nyab xeeb ntawv pov thawj, PED 2014/68 / EU Cov Khoom Siv Hluav Taws Xob Cov Lus Qhia GL cov ntaub ntawv pov thawj, ntawv pov thawj, SGS daim ntawv pov thawj khoom zoo thiab lwm yam ntawv pov thawj thiab kev tsim nyog. Peb nruj me ntsis siv GB / T 3639-2009, ASTM A519, DIN2391, JIS G3445 thiab lwm cov qauv hauv tebchaws thiab thoob ntiaj teb kom ntseeg tau tias peb cov khoom zoo.
