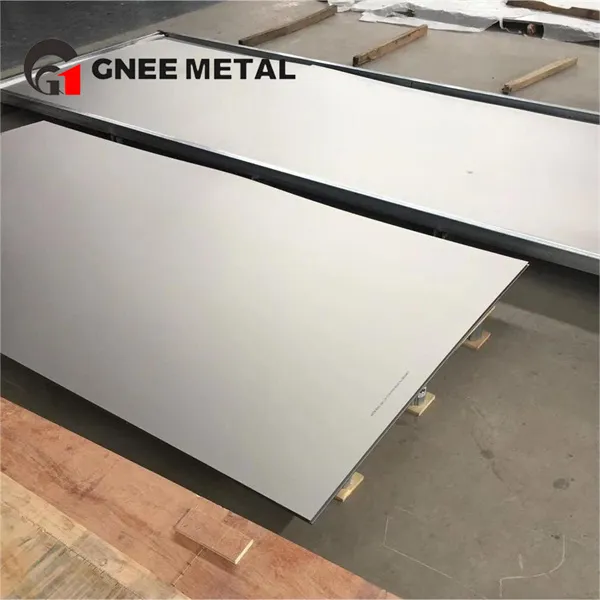

Qib 9 Ti-3Al-2.5V Titanium Ntawv Nyiaj Phaj
Gr9 titanium alloy yog cov khoom siv titanium alloy, tseem hu ua TC3.0 (Ti-3Al-2.5V), uas yog tsim los ntawm 99.7% ntshiab titanium, 3% aluminium thiab 2.5% vanadium.
Hauj lwm lawm
Qhov zoo ntawm Qib 9 alloy titanium ntawv
Lub zog siab thiab toughness: Qib 9 titanium ntawv muaj lub zog zoo thiab tawv, haum rau qhov kub thiab txias ib puag ncig. Corrosion tsis kam: muaj peev xwm tiv taus qhov yaig ntawm cov dej hiav txwv, dej ntsev thiab lwm yam corrosive media, haum rau marine engineering thiab cov khoom siv tshuaj.
Zoo weldability: haum rau cov pa welding, arc vuam, laser vuam thiab lwm yam txheej txheem, nrog siab plasticity.
Tsawg ntom ntom: sib dua li ntau lwm cov hlau, haum rau cov khoom uas xav tau kev tsim qauv.
Specifications thiab Standards
| Txuj | Title | Daim ntawv thov |
|---|---|---|
| ASTM B265 | Standard Specification rau Titanium thiab Titanium Alloy Sawb, Sheet, thiab Phaj | Kev lag luam, kev lag luam, lub hom phiaj dav dav |
| ASME SB-265 | ASME Boiler & Pressure Vessel Code version | Kev siv lub nkoj siab |
| TIAB SA 4919 | Titanium Alloy, Ntawv, Sawb, thiab Phaj, 3Al-2.5V, Annealed | Aerospace thawj qauv |
| TIAB SA 4944 | Titanium Alloy, Hydraulic Tubing, 3Al-2.5V, Annealed | Aerospace hydraulic kab |
| MIL -T-9046 | Titanium thiab Titanium Alloy Sheet thiab Phaj | Tub rog specification |
| TS EN ISO 5832-11 | Implants for Surgery - Cov Khoom Siv Hlau - Ntu 11: Wrought Titanium 3Al-2.5V | Kev kho mob implants (thaum teev) |
Tshuaj muaj pes tsawg leeg
| Element | ASTM B265 Qib 9 (wt%) | AMS 4919 (wt%) |
|---|---|---|
| Titanium | Tshuav | Tshuav |
| Aluminium (Al) | 2.5 – 3.5 | 2.5 – 3.5 |
| Vanadium (V) | 2.0 – 3.0 | 2.0 – 3.0 |
| Hlau, max | 0.25 | 0.20 |
| Oxygen, max | 0.15 | 0.12 |
| Cov pa roj carbon, max | 0.08 | 0.08 |
| Nitrogen, max | 0.03 | 0.03 |
| Hydrogen, max | 0.015 | 0.0125 |
| Residuals, txhua max | 0.10 | 0.10 |
| Residuals, tag nrho max | 0.40 | 0.40 |
Thermal Properties
Lub thermal zog ntawm qib 9 Ti 3Al 2.5V alloy yog tabulated hauv qab no.
| Cov khoom | Metric | Imperial |
|---|---|---|
| Thermal expansion co-ntau npaum (@20-95℃/68-203℃F) | 9.61 µm / m degree | 5.34 µin / hauv℃F |
| Thermal conductivity | 8.30 W / mK | 57.6 BTU in/hr.ft².℃F |
Lwm Lub Npe
Cov ntaub ntawv sib npaug rau qib 9 Ti 3Al 2.5V alloy yog raws li hauv qab no:
| TIAB SA 4943 | TIAB SA 4944 | ASTM B265 (9) | ASTM B337 (9) |
| ASTM B338 (9) | ASTM B348 (9) Kev ntsuas | ASTM B381 (9) Kev ntsuas | TIAB SA 2241 |
| GE B50 TF117 | TSO-9046 | TSO-9047 | TIAB SA 1260 |
| TIAB SA 4954 |
|
Nto Finishing
| Ua kom tiav | Txoj kev | Daim ntawv thov |
|---|---|---|
| Pickled | HF + HNO₃ acid da dej | Matte grey, standard industrial |
| Polished | Mechanical abrasion | Bright tiav, aesthetic Cheebtsam |
| Hauv av | Centerless los yog nto sib tsoo | Precision thickness, nruj tolerances |
| Bead Blasted | iav hlaws media | Uniform matte, kho mob |
| Anodized | Electrochemical | Hnav tsis kam, xim coding |
Cia ceev faj rau qib 9 Titanium Sheet.
Kev xaiv ib puag ncig cia.
Lub chaw cia khoom yuav tsum zoo huv si, ntws zoo, thiab deb ntawm cov pa phem los yog plua plav factories thiab mines.
Warehouse yuav tsum muaj qhov tsim nyog cia tom qab, tshav ntuj hnub cua, nag los nag.
Stacking thiab tiv tauj cov cai:
Nws tsis tuaj yeem muab tso rau hauv cov kua qaub, alkali, ntsev thiab lwm yam khoom siv uas muaj zog stripping rau titanium.
Cov khoom sib txawv ntawm cov khoom siv titanium yuav tsum tau muab cais thiab muab tso rau kom tsis txhob muaj kev ntxhov siab thiab kev sib cuag nrog cov khoom corrosive.
Vim Li Cas Qib 9 Yog Kev Xaiv Ntau Yam
Qib 9 Ti-3Al-2.5V nyob qhov chaw qab zib hauv tsev neeg titanium alloy.
Nws muaj zog txaus los hloov Qib 2 hauv siab- khaws cia thiab cov qauv siv, tseem tsim tau thiab weldable txaus los tsim tsis muaj qhov nyuaj thiab nqi ntawm Qib 5.
Qhia rau qib 9 ntawv ci thiab phaj thaum:
Koj xav tau 80% lub zog siab dua qib 2 yam tsis muaj kev cuam tshuam corrosion
Formability yuav tsum tau - cov duab complex, nruj khoov
Vuam yog yuav tsum tau - tsis muaj ncej-welding thaum tshav kub kub kho
Qhov hnyav txo yog qhov tseem ceeb - 40% sib zog dua hlau, 80% muaj zog dua qib 2
Aerospace, marine, los yog chemical daim ntawv thov xav tau ntawv pov thawj, traceable khoom
Ntawv ci thicknesses xav tau rau honeycomb, shielding, los yog precision Cheebtsam
Loj -scale Hoobkas tsim ntawm Ti-3Al-2.5V alloy titanium ntawv
Pab neeg txhim khu kev qha zoo muab Ti-3Al-2.5V nyias titanium ntawv
GNEE yog cov chaw tsim khoom tshwj xeeb hauv kev tshawb fawb, kev tsim kho, tsim khoom, muag thiab kev pabcuam ntawm cov khoom siv titanium xws li titanium raj, titanium rods, titanium nplooj ntawv, titanium xov hlau thiab titanium strips. Peb lub tuam txhab nyob rau hauv Henan xeev nrog kev khiav tsheb yooj yim. Peb lub Hoobkas tau koom nrog kev lag luam txawv teb chaws rau ntau tshaj 16 xyoo thiab muaj kev paub ntau lawm. Peb lub khw tseem ceeb yog Dubai, Indonesia, Singapore, Nyab Laj, Malaysia, Philippines, Chile, Mexico, Israel, Spain thiab lwm yam.
