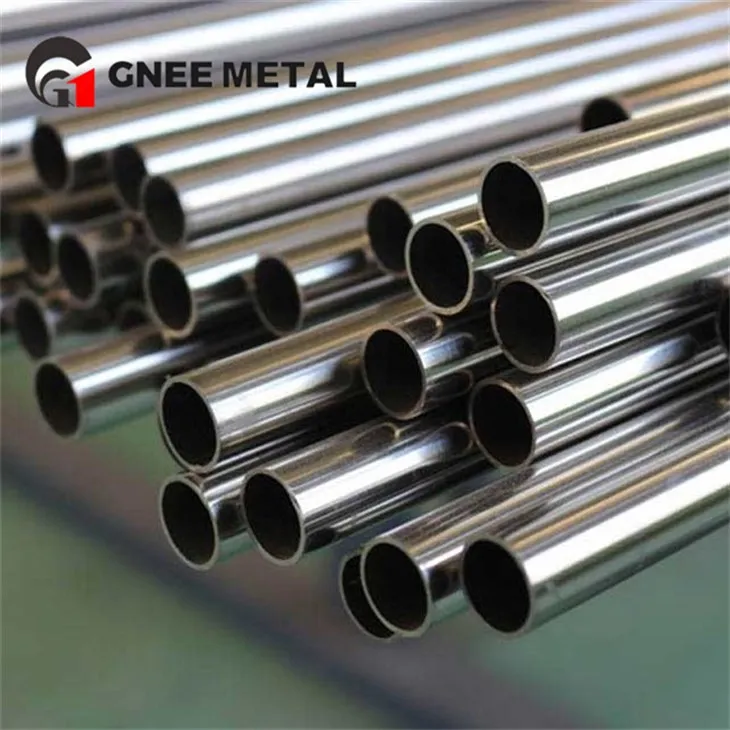

Titanium Qib 7 Pipe
Sab nraud txoj kab uas hla: 4 ~ 114mm
Phab ntsa thickness: 0.2 ~ 4.5mm
Ntev: Tsawg dua lossis sib npaug li 15m
Kev qhia: ASTM B338
Xaus: Plain End, Beveled End, Treaded
Hauj lwm lawm
Titanium Qib 7 yog dab tsi?
Titanium Qib 7 yog palladium- ruaj khov ua lag luam ntshiab titanium alloy, tsim UNS R52400 thiab npog hauv qab ASTM B861 (seamless yeeb nkab), ASTM B862 (welded yeeb nkab), thiab lawv qhov sib npaug ASME. Nws yog tshuaj zoo ib yam rau Qib 2, nrog rau qhov tseem ceeb ntxiv ntawm 0.12-0.25% palladium (Pd).
Qhov sib ntxiv me me palladium no ua rau muaj kev txhim kho corrosion hauv kev txo cov kua qaub, cov kab mob crevice, thiab qhov kub thiab txias chloride ib puag ncig uas tus qauv Qib 2 yuav muaj kev tawm tsam hauv zos. Qib 7 yog dav suav hais tias yog tus hwm zoo corrosion- qib titanium resistant, muab cov ntaub ntawv zoo tib yam li Qib 2 tab sis nrog lub hnab ntawv kev pabcuam dav dav.
Sab saum toj Gr7 Titanium Khoom Zoo
Qib 7 seamless titanium raj surpasses txawm Qib 2 nyob rau hauv nws corrosion kuj, tshwj xeeb tshaj yog nyob rau hauv heev oxidizing thiab txo ib puag ncig. Qhov no ua rau nws tsim nyog siv rau hauv kev lag luam tshuaj thiab petrochemical, nrog rau cov nroj tsuag desalination.Txawm tias nws txhim kho corrosion kuj, Qib 7 nyias phab ntsa titanium yeeb nkab khaws cov weldability zoo, tso cai rau kev tsim cov kav dej nyuaj yam tsis muaj kev cuam tshuam kev ua haujlwm.
Titanium Qib 7 Tube Chemical Composition
| Element | Titanium Gr7 |
| C | 08 max |
| Ti | Bal |
| N | 03 max |
| Fe | 0.30 max |
| H | 015 max |
| Pd | .12 – .25 |
| Al | – |
| O | .25 max |
Cov yam ntxwv ntawm Titanium Gr 7
| Qhov kub thiab txias | Khoom siv rau ntub corrosion |
| Melting Range | 1670 degree |
| Qhov ntom | 4.51 g / cm³ |
| ISO-V qhov cuam tshuam toughness ntawm -59 degree | ≥62 J/cm² |
| Luas <83 J/cm² |
Daim ntawv thov
Kev ua tshuaj lom neeg
Kev Ua Lag Luam Tseem Ceeb rau Qib 7 Pipe
Hydrochloric acid tuav:Piping rau HCl rov qab systems, pickling kab
Chlor{0}}alkali ntau lawm:Cov chlorine ntub dej txias, dechlorination yees
Fertilizer manufacturing:Phosphoric acid evaporators, reactors
Hlau refining:Nickel / cobalt leaching autoclaves
Cov tshuaj zoo:Batch reactor piping, aggressive intermediate tebchaw
Flue Gas Desulfurization (FGD)
Scrubber inlet ducting:Condensing acid chlorides, qis pH
Qhov hluav taws xob ducting thiab stack liners:ntub / qhuav interface, crevice tej yam kev mob
Reheat coils:Kub cycling, acidic condensate
Geothermal zog
Brine tuav kab:Siab -kub, siab -chloride, hydrogen sulfide
Lub taub hau piping:Kev ntsuas hnyav thiab corrosive kua
Kub Exchanger Piping:Tsis yog- tshem tawm cov pa roj condensable
Qib 7 vs. Qib 2
| Parameter | Qib 2 | Qib 7 |
|---|---|---|
| Seamless yeeb nkab muaj | Siab, Tshuag | Txwv tsis pub, ua - rau - xaj |
| Welded yeeb nkab muaj | Siab, Tshuag | Tsawg heev, kev cai txiav txim |
| Lub sijhawm ua haujlwm (seamless) | 2-6 lub lis piam | 10-16 hnub |
| Lub sijhawm ua haujlwm (welded) | 3-8 lub lis piam | 12-18 hnub |
| Yam tsawg kawg nkaus | Tsawg (cov khoom txiav) | High (mill khiav) |
| Tus nqi txheeb ze | Lub hauv paus | 2.5–3.5x |
