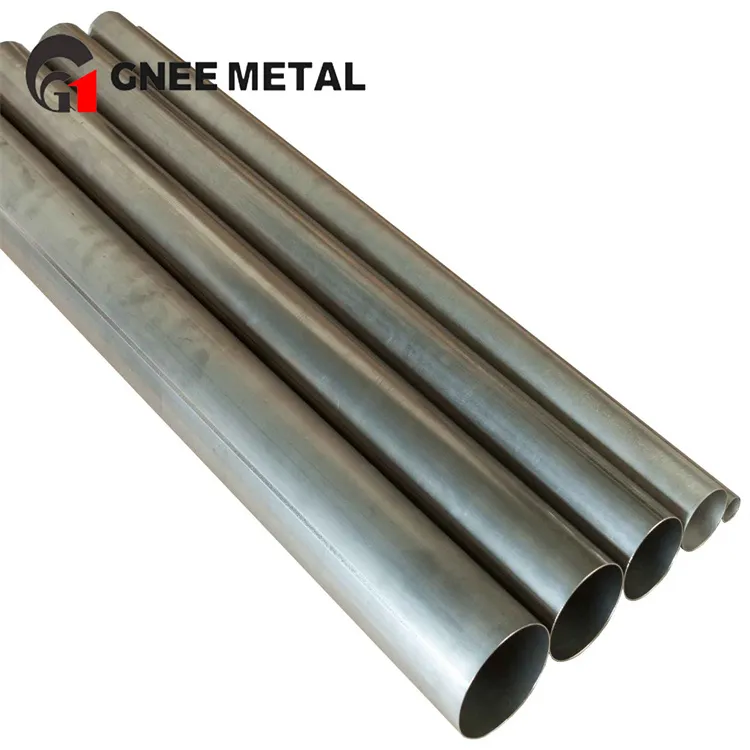

Titanium Qib 2 Pipe
ASTM B338 Qib 2 titanium tubing yog seamless los yog welded tubing ua los ntawm kev lag luam ntshiab (CP) Qib 2 titanium, ib daim ntawv tsis siv ntawm titanium, UNS No. R50400, uas muaj cov ntsiab lus titanium yam tsawg kawg nkaus li ntawm 98.925% mus rau 99.5% los ntawm hnyav.
Hauj lwm lawm
ASTM B338 Qib 2 titanium tubing yog seamless los yog welded tubing ua los ntawm kev lag luam ntshiab (CP) Qib 2 titanium, ib daim ntawv tsis siv ntawm titanium, UNS No. R50400, uas muaj cov ntsiab lus titanium yam tsawg kawg nkaus li ntawm 98.925% mus rau 99.5% los ntawm hnyav. ASTM B338 Gr. 2 titanium tubing feem ntau yog siv rau hauv kev tsim cov condensers deg, evaporators, thiab cov cua kub exchangers. Cov ntawv thov no feem ntau xav tau kev tiv thaiv corrosion zoo heev nrog rau kev tsim cov ductility siab nrog lub zog qis hauv kev pabcuam. Cov titanium raj no tuaj yeem ua tiav rau hauv kauv, U-tubes, serpentine raj, concentric coils, thiab lwm yam tshwj xeeb cov duab.
Kev lag luam-ua titanium ntau lawm technology
Chemical Composition Requirements
|
Element |
Qhov hnyav% |
|
C |
Tsawg dua lossis sib npaug rau 0.08 |
|
O |
Tsawg dua lossis sib npaug rau 0.25 |
|
N |
Tsawg dua lossis sib npaug rau 0.03 |
|
H |
Tsawg dua lossis sib npaug rau 0.015 |
|
Fe |
Tsawg dua lossis sib npaug rau 0.30 |
|
*OEE |
Tsawg dua lossis sib npaug rau 0.10 |
|
*OET |
Tsawg dua lossis sib npaug rau 0.40 |
|
Ti |
Tseem tshuav |
Khoom siv, Fabrication, thiab kev kho cua sov
ASTM B338 Qib 2 titanium welded yeeb nkab yuav tsum tau ua los ntawm annealed tiaj dov daim ntawv los yog sawb los ntawm tsis siv neeg hluav taws xob arc vuam (TIG) txheej txheem. Cov txheej txheem tseem ceeb yog raws li nram no: titanium daim ntawv uncoiling → shear taub qab vuam → tu → raj txoj kev → TIG vuam → eddy tam sim no flaw detection → pre-inch → annealing → precision txo straightening → eddy tam sim no flaw nrhiav → txoj kab uas hla ntsuas → txiav → txiav → kuaj ultrasonic → hydrostatic kuaj → zaum kawg tshuaj ntsuam → ntim. Welded kav yuav tsum muaj tsawg kawg yog kev ntxhov siab txo cov cua sov kho tom qab tsim thiab vuam. Tsis pub muab cov ntaub ntawv sau.
Pab pawg ntseeg siab heev
FAQ
Q: Peb puas tuaj yeem tuaj xyuas koj lub Hoobkas?
A: Zoo siab txais tos thaum peb muaj koj lub sijhawm peb yuav tuaj tos koj.
Q: Kuv puas tuaj yeem tau txais cov qauv ua ntej xaj?
A: Yog lawm, tau kawg. peb tuaj yeem tsim los ntawm koj cov qauv lossis cov duab kos duab.
Q: Koj lub sijhawm xa khoom yog dab tsi?
A: Peb lub sijhawm xa khoom yog li ib lub lis piam, lub sijhawm raws li tus naj npawb ntawm cov neeg siv khoom.
Q: Koj yuav ua li cas rau peb lub lag luam mus ntev thiab kev sib raug zoo?
A: Peb khaws cov khoom zoo thiab cov nqi sib tw kom ntseeg tau tias peb cov neeg siv khoom tau txais txiaj ntsig; Peb hwm txhua tus neeg siv khoom raws li peb tus phooj ywg thiab peb ua siab dawb ua lag luam thiab ua phooj ywg nrog lawv. Txawm lawv tuaj qhov twg los.
Cim npe nrov: titanium qib 2 yeeb nkab, Tuam Tshoj titanium qib 2 yeeb nkab manufacturers, lwm tus neeg, Hoobkas
