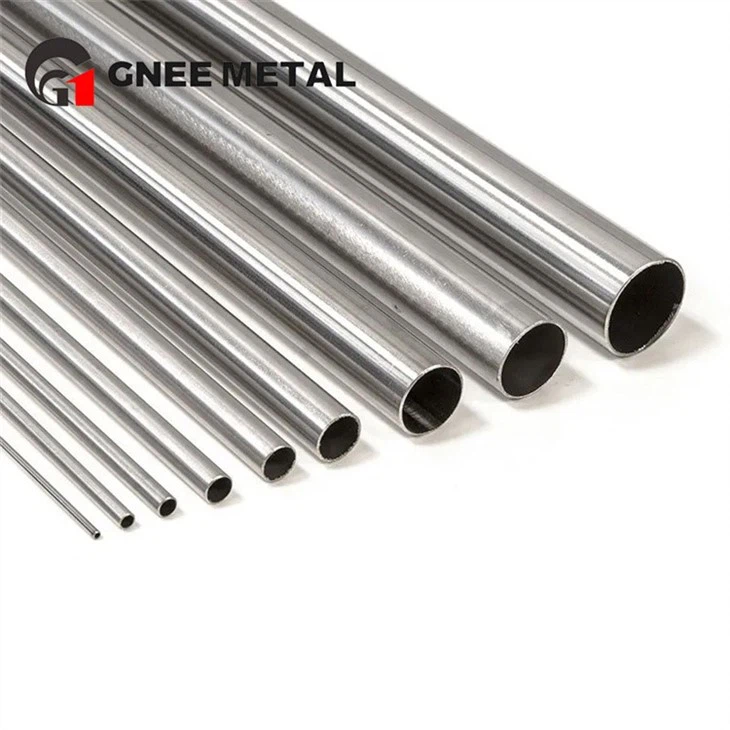

Seamless Titanium Tube Qib 23

Qib 23 (UNS R56407, Ti-6Al-4V ELI) yog qhov ntxiv -tsawg-interstitial version ntawm Ti-6Al-4V: tib lub txhuas thiab vanadium puag, tab sis nrog nruj tswj tsis tshua muaj oxygen, hlau thiab lwm yam interstitials rau siab tshaj plaws tawg toughness thiab ductility. Nplooj ntawv no qhia txog qib 23 seamless titanium raj - daim ntawv yuav tsum tau rau cov kev xav tau tshaj plaws kev kho mob, aerospace thiab marine daim ntaub ntawv.



Qhov "ELI" txhais li cas thiab Vim Li Cas Nws Tseem Ceeb

Cov ntsiab lus interstitial - oxygen, nitrogen, hydrogen thiab carbon - zaum ntawm titanium atoms nyob rau hauv cov siv lead ua lattice thiab muaj zog cuam tshuam ductility thiab toughness. Qib 23 txwv cov pa oxygen rau 0.13% siab tshaj plaws (Qib 5 tso cai 0.20%) thiab hlau rau 0.25% siab tshaj plaws, uas ntsuas kev txhim kho pob txha toughness thiab qaug zog tus cwj pwm - cov khoom vaj tse uas ua rau ELI tus qauv rau orthopedic implants thiab tseem ceeb aerospace Cheebtsam.

Chemical Composition (max %, thaj tsam raws li tau sau tseg)

Lub ntsiab	Qib 23 (UNS R56407)
Nitrogen (N)	0.03
Cov pa roj carbon (C)	0.08
Hydrogen (H)	0.0125
Hlau (Fe)	0.25
Cov pa oxygen (O)	0.13
Aluminium (Al)	5.5–6.5
Vanadium (V)	3.5–4.5
Titanium (Ti)	Tshuav



Mechanical Properties (Annealed, per ASTM B861)

Khoom	Yuav tsum tau (min)
Qhov kawg tensile zog	895mpa ua
0.2% yield zog	825 MPa ua
Elongation (2 hauv gauge)	10%
Ceev / elastic modulus	4.43 g / cm³ / ~ 113 GPa



Qhov ntau thiab tsawg (Seamless)

Parameter	Ntau yam
Sab nraud txoj kab uas hla	3-200 hli
Phab ntsa thickness	0.4-10 hli (muab rau OD)
Ntev	customizable; loj 3m,6m;. luv ntu thiab arcs ntawm kev thov
Nto	polished, sandblasted, pickled (AP)

Kev kho cua sov: annealed raws li tus qauv; kev daws teeb meem thiab kev laus kev kho mob muaj los kho lub zog thiab corrosion tus cwj pwm rau specification.



Standards thiab Certification

Seamless Grade 23 tube yog muab rau ASTM B861 (seamless raj thiab yeeb nkab), ASTM F67/F136 rau cog- qib kev pab cuam qhov twg muaj, thiab GB / T 3624; tus thawj nplooj ntawv welded- cov qauv yeeb nkab (ASTM B862, GB/T 26057) siv rau cov khoom siv vuam thiab tsis raug suav tias yog seamless mov. Daim ntawv pov thawj EN 10204 / 3.1 nrog tshuaj lom neeg, tensile thiab qhov loj me; hydrostatic thiab eddy- kev sim tam sim no muaj nyob rau ntawm kev thov.



Daim ntawv thov

• Kev kho mob:implantable ntaus ntawv tubing, cov khoom siv phais phais, kev cog hniav - biocompatibility ntxiv rau ELI tawg toughness.
• Aerospace:hydraulic thiab structural tubing xav tau qhov zoo tshaj plaws toughness - mus rau - hnyav ntawm tsev neeg titanium.
• Marine thiab siab -kev ua tau zoo:subsea ntsuas vaj tse thiab tubing qhov twg corrosion kuj thiab qaug zog lub neej tseem ceeb heev.
