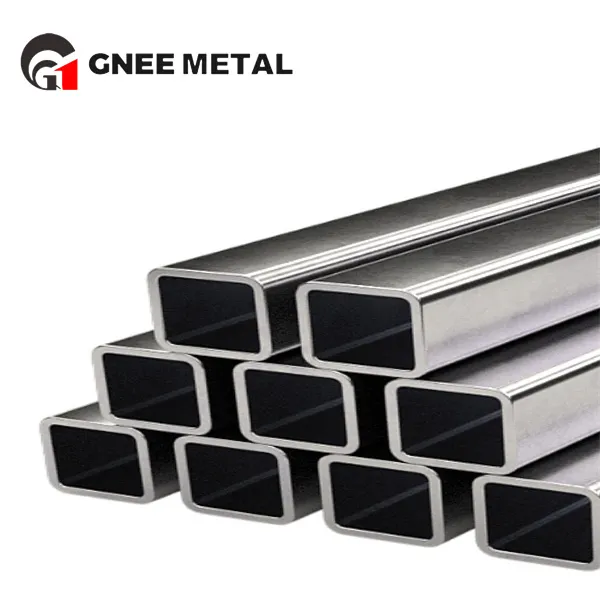

Gr2 Titanium Seamless Square Tubing

Gr2 titanium square tubes muaj lub teeb yuag, lub zog siab, thiab cov khoom siv zoo tshaj plaws, thiab tau siv dav hauv cov khoom siv hluav taws xob, xws li cov khoom siv hluav taws xob sib hloov, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators, thiab conveying pipelines, thiab lwm yam. thiab muaj peev xwm tswj tau qhov kub thiab txias ib puag ncig. Kev ua tau zoo.



Sab saum toj zoo Gr2 seamless titanium raj

Tsis tas li ntawd, Gr2 hlau titanium raj muaj kev tiv thaiv corrosion zoo heev, muaj peev xwm tiv taus ntau yam tshuaj lom neeg corrosion media, xws li acids, alkalis, ntsev thiab lwm yam. Nyob rau hauv aerospace teb, Gr2 titanium raj yog dav siv nyob rau hauv cov txheej txheem ntawm aircraft, foob pob ua ntxaij thiab lwm yam ya tshuab vim lawv siab zog thiab zoo corrosion kuj. Tsis tas li ntawd, Gr2 Titanium Square Tube tseem ua lub luag haujlwm tseem ceeb hauv kev lag luam tshuaj lom neeg thiab dej hiav txwv engineering, xws li rau kev tsim cov khoom siv tiv thaiv corrosion, cov kav dej thiab cov tank.



Yam khoom	Specification
Khoom npe	Gr2 Titanium Seamless Square Tubing
Khoom Qib	Titanium Qib 2 (UNS R50400)
Hom khoom	Kev lag luam Pure Titanium (CP Titanium)
Kev tsim khoom	Seamless, Txias Drawn
Cov qauv	ASTM B861, ASTM B338, ASME SB861, ASTM B337 (Kev Cai Muaj)
Qhov Loj	10 × 10 mm - 150 × 150 mm
Phab ntsa Thickness	0.5mm-10.0 hli
Ntev	500mm - 6,000mm (Custom Length Muaj)
Hom kaum	Ntsej Muag / Rounded Corner
Nto tiav	Pickled, Bright Annealed (BA), Polished
Ua siab ntev	Raws li ASTM Standard los yog Cov Neeg Siv Khoom kos duab
Qhov xwm txheej	Annealed (M)
Qhov ntom	4.51 g / cm³
Kev tshuaj xyuas	PMI, Tshuaj Ntsuam Xyuas, Mechanical Test, UT, Eddy Tam Sim No Testing, Dimensional Inspection
Daim ntawv pov thawj	EN 10204 3.1 MTC, SGS, BV, TUV (Optional)
Ntim	Lub tes tsho yas, Ntoo Case, Export Standard Packing
Kev kho kom haum	Custom Size, Phab ntsa Thicknesses, Ntev, Nto tiav, thiab OEM Service muaj



Txuj	Qib sib npaug / Tsim
ASTM / ASME Cov	Qib 2 Titanium
UNS	R50400
ISO	ISO 5832-2 Qib 2
DIN / W. Nr.	3.7035
EN	Ti 2
JIS (Nyiv)	Qib 2 Titanium
GB (Tuam Tshoj)	TA 2
GOST (Russia)	BT1-0 (Piv txwv)



Khoom Txheej txheem cej luam

Khoom	Kev piav qhia
Hom khoom	Kev lag luam Pure Titanium (CP Titanium)
UNS Number	R50400
Lub Npe	Titanium Qib 2 / Gr2 Titanium
Qhov ntom	4.51 g / cm³
Corrosion Resistance	Zoo heev
Weldability	Zoo heev
Formability	Zoo heev
Yam khoom Cov ntawv	Square Tubes, Round Tubes, Yeeb Nkab, Bar, Phaj, Ntawv, Hlau



Hauv qab

aircraft qauv honeycomb

gaskets

aircraft tawv

kub exchanger qhov chaw

implantable roj teeb rooj / ntaub thaiv npog rau CRM thiab Neurostimulation li

implantable roj teeb cathodes / connectors

stamped los yog etched fabrications



Thaum xaiv structural tubing rauchemical processing, marine engineering, offshore platforms, thiab industrial fabrication, Gr2 Titanium Seamless Square Tubingfeem ntau piv nrog304L, 316L, thiab Duplex 2205 stainless hlau. Thaum cov hlau tsis muaj steel muaj tus nqi pib qis dua, Qib 2 titanium muab kev tiv thaiv corrosion zoo dua, qhov hnyav dua, thiab lub neej ua haujlwm ntev dua nyob rau hauv ib puag ncig hnyav.

Khoom	Gr2 Titanium Seamless Square Tubing	316L Stainless hlau	Duplex 2205 Stainless hlau
Khoom Qib	Qib 2 (UNS R50400)	UNS S31603	UNS S32205
Qhov ntom	4.51 g / cm³	7.99 g/m²	7.80 g / cm³
Qhov hnyav	Teeb heev	Hnyav	Hnyav
Corrosion Resistance	Zoo heev	Zoo	Zoo heev
Seawater Resistance	Zoo heev	Nruab nrab	Zoo
Chloride SCC Resistance	Zoo heev	Ncaj ncees	Zoo heev
Pitting & Crevice Corrosion	Zoo heev	Zoo	Zoo heev
Lub zog - rau - Qhov hnyav piv	Zoo heev	Nruab nrab	Siab
Weldability	Zoo heev	Zoo heev	Zoo
Kev Pabcuam Lub Neej	30+ Xyoo*	10-20 Xyoo*	20-30 Xyoo*
Tus nqi kho mob	Tsawg	Nruab nrab	Nruab nrab
Tej kev siv	Marine, Tshuaj, Offshore, Aerospace	Kev ua zaub mov, khoom siv tshuaj	Offshore, Roj & Roj, Cov Khoom Siv Siab

Thaum xaiv Stainless Hlau:

Daim ntawv thov yog nyob rau hauv ame me, tsis yog -corrosive ib puag ncig

Cov khoom siv pib nqiyog thawj qhov kev txiav txim siab

High corrosion kuj yogtsis yogqhov tseem ceeb tsim qauv



Thaum xaiv Gr2 Titanium Seamless Square Tubing:

Marine & Offshore Structures

Cov khoom siv tshuaj ua haujlwm

Desalination Nroj tsuag

Kub Exchanger Ncej

Cov Khoom Siv Roj & Roj

Aerospace Structures

Siab -Corrosion Industrial Environments



Khoom siv	Muaj nuj nqi
Nqus Arc Remelting (VAR) Rauv	Ua tau siab -purity titanium ingots nrog cov tshuaj muaj pes tsawg leeg.
Hydraulic Forging Xovxwm	Daim ntawv titanium billets nrog kev txhim kho grain qauv thiab txhua yam khoom.
Kub Extrusion Kab	Manufactures seamless titanium raj thiab kav nrog zoo heev structural kev ncaj ncees.
Txias Pilger Mill	Txo txoj kab uas hla ntawm lub raj thiab phab ntsa thickness thaum txhim kho qhov tseeb qhov tseeb.
Txias Drawing Tshuab	Ua precision titanium raj nrog nruj tolerances thiab du nto.
Nqus Annealing Rauv	Relieves internal stresses thiab optimizes mechanical zog nyob rau hauv ib tug tswj cua.
Straightening tshuab	Xyuas kom zoo zoo ncaj ua ntej kev soj ntsuam thiab ntim.
Tsis siv neeg txiav tshuab	Muab kev txiav kom raug-rau-ntev ua tiav nrog cov yeeb nkab huv si.
Polishing & Pickling Kab	Txhim kho qhov chaw tiav thiab tshem tawm oxide txheej rau txhim kho corrosion kuj.
CNC Machining Center	Ua precision machining rau kev cai titanium Cheebtsam thiab tshwj xeeb qhov ntev.
Ultrasonic Test (UT) Cov cuab yeej siv	Txheeb xyuas qhov tsis xws luag sab hauv thiab ua kom muaj kev ntseeg ruaj khov.
Eddy Current Testing (ECT) System	Txheeb xyuas qhov chaw thiab ze rau - qhov chaw tsis xws luag hauv titanium raj.
Universal Test tshuab	Ua qhov tensile, yield zog, thiab elongation xeem.
Optical Emission Spectrometer (OES)	Txheeb xyuas cov tshuaj muaj pes tsawg leeg ntawm cov khoom siv raw thiab cov khoom tiav.
Coordinate Measuring Tshuab (CMM)	Ntsuas qhov tseem ceeb qhov ntev nrog siab precision.



Ntim:
Pob zoo heev: Los tiv thaiv- ntawv dej thiab yas zaj duab xis + npog los ntawm cov ntawv hlau + strapped nrog yam tsawg kawg ntawm peb lub stripping strips + tsau rau ntawm cov hlau los yog ntoo pallets los ntawm strapping strips. lt tuaj yeem tiv thaiv cov khoom lag luam zoo los ntawm kev xeb thiab ntau yam kev hloov pauv huab cua thaum caij nkoj hauv hiav txwv.
Shipping:
Feem ntau, peb nkoj los ntawm Shanghai, Tianjin, Qingdao thiab Ningbo ports. Peb muaj sijhawm ntev - kev koom tes nrog ntau tus ex- cov tuam txhab xa khoom xa tuaj thiab yuav nrhiav tau hom kev thauj mus los zoo tshaj plaws rau koj.







GNEE yog lub chaw tsim khoom tshwj xeeb hauv kev tshawb fawb, kev tsim kho, tsim khoom, muag thiab kev pabcuam ntawm cov khoom siv titanium xws li titanium raj, titanium rods, titanium nplooj ntawv, titanium xov hlau thiab titanium strips. Peb lub tuam txhab nyob rau hauv Henan xeev nrog kev khiav tsheb yooj yim. Peb lub Hoobkas tau koom nrog kev lag luam txawv teb chaws rau ntau tshaj 16 xyoo thiab muaj kev paub ntau lawm. Peb lub khw tseem ceeb yog Dubai, Indonesia, Singapore, Nyab Laj, Malaysia, Philippines, Chile, Mexico, Israel, Spain thiab lwm yam.


Cim npe nrov: gr2 titanium seamless square tubing, Tuam Tshoj gr2 titanium seamless square tubing manufacturers, lwm tus neeg, Hoobkas, titanium
