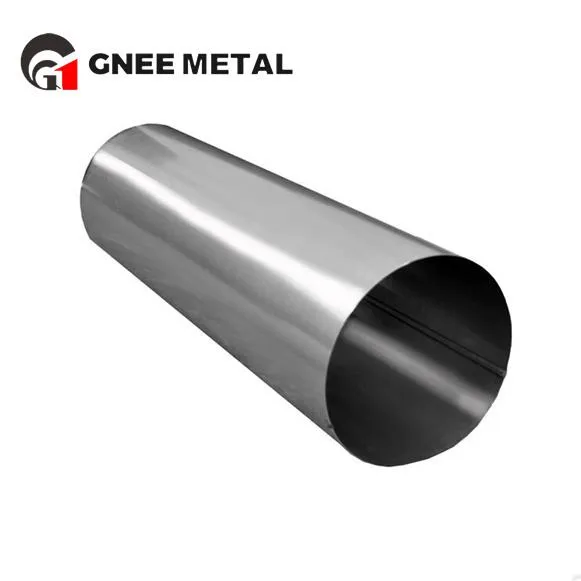

5 Nti Gr5 Titanium yeeb nkab
Loj Specifications
- Txoj kab uas hla: 5 nti (kwv yees 127 mm)
-Wall Thickness: Phab ntsa thicknesses tuaj yeem sib txawv raws li qhov xav tau ntawm daim ntawv thov tshwj xeeb. Feem ntau phab ntsa thicknesses li ntawm ob peb millimeters mus rau tshaj kaum millimeters.
-Length: Ntev tuaj yeem ua tau raws li cov neeg siv khoom tshwj xeeb.
Hauj lwm lawm
Gr5 Titanium yog ib qho siv titanium alloy, tseem hu ua Ti-6Al-4V, muaj 6% txhuas thiab 4% vanadium. Cov hlau no muaj lub zog zoo heev, toughness thiab corrosion kuj thiab yog siv nyob rau hauv ntau yam kev lag luam. gr5 titanium alloy muaj lub zog siab heev thiab tswj cov khoom siv kho kom zoo tshwj xeeb tshaj yog thaum kub kub.
Qib siab ntawm Gr5 titanium raj ntau lawm tshuab
Titanium Qib 5 Mechanical Properties
| Khoom | Yam tsawg kawg nkaus | Tus nqi |
| Tensile zog MPa (ksi) | 897 (130) | 1000 (145) |
| 0.2% Pov Thawj Stress MPa (ksi) | 828 (120) | 910 (132) |
| Elongation Tshaj 2 nti% | 10 | 18 |
| Txo hauv cheeb tsam% | 20 | |
| Elastic Modulus GPa (Msi) | 114 (17) | |
| Hardness Rockwell C | 36 | |
| Specified Khoov Radius<0.070 in x Thickness | 4.5 | |
| Specified Bend Radius >0.070 hauv x Thickness | 5 | |
| Welded Khoov Radius x Thickness | 6 | |
| Charpy, V-Notch Impact J (ft.lbf) | 24 (18) |
Cov cheeb tsam thov
1. Aerospace: Gr5 titanium alloy yog dav siv nyob rau hauv aircraft engine Cheebtsam, fuselage qauv, tsaws iav thiab lwm yam tseem ceeb Cheebtsam vim nws lub teeb yuag thiab siab zog.
2. Kev lag luam tshuaj: Gr5 titanium raj yog siv rau hauv kev tsim cov kav dej, cov khoom siv hluav taws xob, cov condensers thiab lwm yam khoom siv hauv cov khoom siv tshuaj vim nws zoo heev corrosion kuj.
3. Kev lag luam kev kho mob: Vim nws zoo biocompatibility thiab corrosion kuj, Gr5 titanium tubing feem ntau yog siv nyob rau hauv kev tsim cov kev kho mob implants (xws li orthopedic implants) thiab cov khoom siv kho mob.
4. Kev lag luam hluav taws xob: Hauv kev lag luam nuclear thiab lwm yam kev lag luam, Gr5 titanium tubing kuj siv los tsim cov kav dej thiab cov hlab ntsha.
Ntim ntawm Gr5 Loj Diameter Titanium Tubing
Pab pawg ntseeg siab muab Gr5 Titanium Tubing
GNEE muaj 16 xyoo kev paub hauv titanium cov khoom thiab xa tawm. Lub tuam txhab yog lub hauv paus hauv Henan Xeev, Suav. Lub tuam txhab nyob ib sab ntawm Beijing-Hong Kong-Macao Expressway thiab muaj ntau tshaj 200 tus neeg ua haujlwm uas tau mob siab rau lub tuam txhab. Lub tuam txhab muaj peev txheej sau npe ntawm 10 lab RMB thiab npog thaj tsam ntawm ntau dua 350,000 square metres. Lub tuam txhab tau dhau SGS daim ntawv pov thawj.
Peb muab cov khoom zoo, kev pabcuam zoo thiab tus nqi sib tw. Peb tau cog lus los tsim cov titanium raj, titanium nplooj ntawv, titanium foils, titanium xov hlau, titanium rods thiab lwm yam.
Peb cov khoom raug xa tawm mus rau ntau tshaj 150 lub teb chaws thiab tau nkag mus rau hauv kev lag luam tseem ceeb xws li roj av, tshuaj lom neeg, kev kho mob, tsheb, chaw nres tsheb loj, aerospace thiab lwm yam.
