Qib 1 Titanium Foil Coils
Qib 1 titanium yog thawj ntawm plaub qib kev lag luam ntshiab titanium. Nws yog qhov softest thiab feem ntau ductile ntawm cov qib no. Nws muaj qhov siab tshaj plaws formability, zoo heev corrosion kuj thiab muaj feem cuam tshuam toughness. Qib TA1 yog cov khoom xaiv rau txhua daim ntawv thov uas yuav tsum tau yooj yim formability thiab feem ntau muaj xws li titanium phaj thiab titanium tubing.
Hauj lwm lawm
GR1 titanium yog dab tsi?

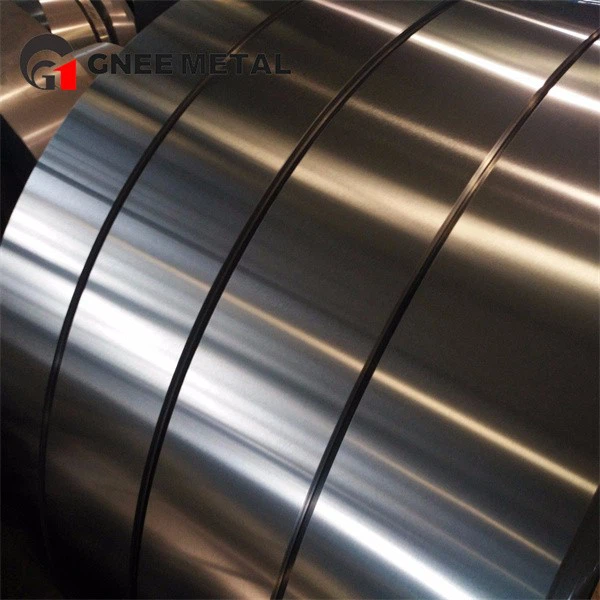

Peb Qib 1 ntshiab titanium ntawv yob yog ultra- yob yob ntawm titanium ua los ntawm cov txheej txheem txias txias, nrog cov tuab ntawm 0.025mm txog 0.20mm thiab dav customizable mus txog 600mm. Cov khoom lag luam muaj nyob rau hauv daim ntawv txuas mus ntxiv, tshwj xeeb yog tsim los rau kev tsim cov txheej txheem uas yuav tsum tau ua kom muaj txiaj ntsig zoo thiab ua haujlwm zoo.
Thaum tuav cov khoom muaj txiaj ntsig ntawm Qib 1 ntshiab titanium- suav nrog kev tiv thaiv corrosion zoo heev, biocompatibility zoo, thiab txias txias dua - kev muaj peev xwm ua tau -txheej thickness tswj thiab cov khoom siv kho tshuab kom ruaj khov thaum ua haujlwm tas mus li. Nto tiav suav nrog ci ntsa iab annealing thiab matte, thiab yob liner muab cov khoom siv tiv thaiv kom tsis txhob muaj kev puas tsuaj saum npoo thaum thauj thiab khaws cia.
Tau txais cov ntaub ntawv qhia ntxaws ntxaws
GR1 Titanium Daim Ntawv Teev Npe
Chemical Composition (Qhov hnyav % - Hom)
| Element | Cov ntsiab lus (Max.%) |
|---|---|
| Titanium (Ti) | Qhov nyiaj tshuav (Ntau dua lossis sib npaug rau 99.5%) |
| Nitrogen (N) | 0.03 |
| Cov pa roj carbon (C) | 0.08 |
| Hydrogen (H) | 0.015 |
| Hlau (Fe) | 0.20 |
| Cov pa oxygen (O) | 0.18 |
| Lwm yam Elements, txhua | 0.10 |
| Lwm yam Elements, tag nrho | 0.40 |
Mechanical Properties (Annealed Condition - Hom)
| Khoom | Tus nqi | Chav tsev | Test Standard |
|---|---|---|---|
| Tensile zog, min. | 240 | MPa (35 hli) | ASTM E8 |
| Yield zog (0.2% Offset), min. | 170 | MPa (25 hli) | ASTM E8 |
| Elongation hauv 2 "/ 50mm, min. | 24 | % | ASTM E8 |
| Kev txo qis ntawm cheeb tsam | 30 | % | ASTM E8 |
| Hardness (Rockwell B) | 70 - 85 | HRB | ASTM E18 |
| Modulus ntawm Elasticity | 105 | GPa (15.2 x 10⁶ psi) | - |
| Qhov ntom | 4.51 | g/cm³ (0.163 lb/in³) | - |
Lub cev muaj zog
| Khoom | Tus nqi | Chav tsev |
|---|---|---|
| Melting Point | 1668 ± 10 | degree (3035℃F) |
| Thermal conductivity (25 degree) | 17 | W/m·K |
| Thaum tshav kub kub (25 degree) | 540 | J/kg · K |
| Hluav taws xob Resistivity | 0.56 | µΩ·m |
| Sib nqus Susceptibility | Paramagnetic (tsawg heev) | - |
Peb tuaj yeem muab GR1 titanium
Kev siv ntawm Titanium GR - 1
Titanium GR-1 yog kev lag luam ntshiab titanium paub txog nws cov kev tiv thaiv corrosion zoo heev thiab siab ductility. Nws cov khoom zoo tshaj plaws ua rau nws muaj txiaj ntsig zoo rau ntau yam kev thov kev lag luam, suav nrog cov hauv qab no:
Kev ua tshuaj lom neeg
Aerospace
Kho mob
Tubrog nkoj
Automotive
Kev tsim vaj tsev
GR1 Titanium ua
| Muaj peev xwm | Cov txheej txheem tseem ceeb & Kev txawj ntse |
|---|---|
| Precision Machining | CNC milling, tig, drilling & tapping. Siv cov cuab yeej ntse, kev ua kom zoo tshaj plaws / nrawm, thiab cov khoom ua kom txias txias kom kov yeej GR1 qhov "gummy" xwm thiab ua kom muaj kev tiv thaiv nruj. |
| Tsim & Fabrication | Txias dov, sib sib zog nqus nqus, nias nres bending, hydroforming. Leveraging GR1 qhov tshwj xeeb ductility rau cov duab complex nrog tswj springback. |
| Vuam & Koom | High-purity argon GTAW (TIG) vuam, laser vuam. Tag nrho -trailing gas tiv thaiv rau oxide-dawb, corrosion-resistant welds. Tshaj tawm -weld stress relieving muaj. |
| Txiav & Txiav | Siab -txhais ntshav txiav, txiav dej, laser txiav. Muab cov npoo huv si nrog cov cua sov tsawg heev- thaj tsam cuam tshuam rau kev ua haujlwm qis qis. |
| Nto Finishing | Mechanical polishing (rau daim iav los yog satin), abrasive blasting, pickling (rau ASTM / kho cov qauv), passivation. Npaj qhov chaw rau kev siv zaum kawg lossis txheej txheej. |
Tau Txais Cov Qauv Dawb & Kev Ntsuas
FAQ
GR1 Titanium yog dab tsi?
GR1 (Qib 1) yog kev lag luam ntshiab, tsis muaj titanium nrog cov ntsiab lus titanium yam tsawg kawg nkaus ntawm 99.5%. Nws yog qhov feem ntau ductile thiab corrosion- qib resistant ntawm cov ntshiab titanium alloys, ua rau nws zoo tagnrho rau cov ntawv thov uas tsim thiab corrosion kuj tseem ceeb heev.
GR1 titanium puas tuaj yeem welded?
Yog lawm, GR1 muaj weldability zoo heev. Gas Tungsten Arc Vuam (GTAW/TIG) nrog siab -purity argon shielding yog tus qauv txheej txheem. Kev tu kom zoo thiab kev tiv thaiv yog qhov tseem ceeb los tiv thaiv oxidation thiab tswj kev tiv thaiv corrosion.
Puas yog GR1 titanium ua haujlwm tawv?
Yog lawm, zoo li cov hlau ntshiab feem ntau, GR1 tuaj yeem ua haujlwm tau- tawv thaum lub caij txias los yog machining. Intermediate annealing tej zaum yuav xav tau rau kev ua haujlwm loj deformation los kho cov ductility thiab tiv thaiv kev tawg.
GR1 puas tuaj yeem ua cua sov- kho kom muaj zog dua?
Tsis yog, GR1 yog ib qho uas tsis yog- tshav kub- kho tau alloy. Nws lub zog yog muab los ntawm kev ua haujlwm txias. Annealing tsuas yog cov txheej txheem thermal siv los txo cov kev ntxhov siab thiab ua kom cov khoom muag tom qab ua haujlwm txias.
Puas yog GR1 titanium haum rau kev kho mob cog?
Yog lawm, GR1 yog dav siv rau kev kho mob mus tas li thiab ib ntus (piv txwv li, pob txha daim hlau, ntsia hlau, cranial meshes) vim nws cov biocompatibility zoo heev, corrosion kuj nyob rau hauv lub cev, thiab tsis yog - lom.
GR1 piv rau GR2 titanium li cas?
GR1 muaj zog qis dua tab sis siab dua ductility thiab corrosion kuj dua GR2. GR2 yog siv dav dua rau kev siv dav dav - lub hom phiaj kev siv, thaum GR1 raug xaiv rau qhov xav tau tshaj plaws corrosive ib puag ncig lossis qhov yuav tsum muaj kev tsim loj.
Peb cov khoom lag luam
| Daim ntawv khoom | Muaj Cov Duab / Hom | Cov Qib Siab | Hom Dimensions (Range) | Txheem Specifications |
|---|---|---|---|---|
| Titanium Tube & Yeeb Nkab | - Seamless yeeb nkab - welded yeeb nkab - Heat Exchanger Tubes (U-Tube, Ncaj) - Hydraulic & Instrumentation Tubing |
GR1, GR2, GR7, GR9, GR12, GR5 (Ti-6Al-4V) | - OD:1/8 "mus rau 12" (3mm - 325mm) - Phab ntsa Thickness:0.028 "mus rau 1.0" (0.7mm - 25mm) - Ntev:Txog li 20ft (6m) tus qauv, kev cai ntev muaj |
ASTM B337, B338, B861, B862 ASME SB337, SB338 |
| Titanium Sheet & Phaj | - Daim Ntawv Txias Rolled - Kub Rolled Phaj - Checker Phaj / Tread Plate |
GR1, GR2, GR5, GR7, GR9, GR12 | - Ntawv Thickness:0.016 "mus rau 0.187" (0.4mm - 4.7mm) - Phaj Thickness:0.187 "mus rau 4" (4.7mm - 100mm) + - Dav:Txog li 60 "(1500mm) - Ntev:Mus txog 240 "(6000mm) |
ASTM B265 ASME SB 265 |
| Titanium Bar & Qws | - Round Bar - Hex Bar - Square Bar - Forged Bar - Centerless Ground Bar |
GR1, GR2, GR5, GR7, GR9, GR12 | - Round Bar Txoj kab uas hla:0.125 "mus rau 12" (3mm - 300mm) - Hex / Square:0.125 "mus rau 4" (3mm - 100mm) - Ntev:Random, txiav - mus rau -ntev, los yog coils (me me diameters) |
ASTM B 348 Cov Lus Qhia Tshwj Xeeb ASME SB 348 |
| Titanium hlau | - Coiled Vuam Hlau - Txoj kab ncaj nraim - Caij nplooj ntoos hlav hlau - Fastener Hlau |
GR1, GR2, GR5 (ELI rau kev kho mob), GR7 | - Txoj kab uas hla:0.010 "mus rau 0.25" (0.25mm - 6.35mm) tus qauv - Spool Luj:Standard 5lb, 10lb, 25lb spools; kev cai ntim muaj |
ASTM B863, F67 (rau kev kho mob) |
| Titanium Sawb & Ntawv Nyiaj | - Txias Rolled Sawb (Coil) - Precision Foil - Shim Tshuag |
GR1, GR2, GR5 | - Thickness (hli):0.004 "mus rau 0.125" (0.1mm - 3.1mm) - Thickness (hli):0.0005 "mus rau 0.004" (0.012mm - 0.1mm) - Dav:Txog li 24 "(600mm) |
ASTM B265 (dawb / ntawv ci) |
Sib tham txog koj qhov project yuav tsum tau
Peb lub Hoobkas
Peb lub Hoobkas tau nruab nrog cov tshuab ua haujlwm siab heev, suav nrog CNC machining chaw (3 mus rau 5-axis), siab-cov yeeb nkab mills, txias dov mills, automated hlau kos kab, thiab CNC- tswj tej tshuab (laser, waterjet, thiab plasma). Peb tuav chav kawm 100,000 huv rhiav rau kev kho mob thiab aerospace ntau lawm, txhawb nqa los ntawm argon- tiv thaiv vuam bays, nqus tsev vacuum annealing furnaces, thiab tag nrho-spectrum zoo soj ntsuam nrog CMM, spectrometer, thiab ultrasonic kuaj cov khoom. Los ntawm cov khoom siv raw mus rau cov khoom tiav, txhua kauj ruam yog ua raws li kev tswj xyuas kom ntseeg tau qhov tseeb qhov tseeb, metallurgical kev ncaj ncees, thiab ua raws li cov qauv thoob ntiaj teb.
Titanium khoom ntim khoom
Peb cov txheej txheem ntim cov txheej txheem suav nrog ntau txheej txheej tiv thaiv kom haum rau cov khoom tshwj xeeb thiab cov neeg siv khoom xav tau. Tag nrho cov ntaub ntawv yog thawj zaug ntxuav, qhuav, thiab qhwv nrog VCI (Vapor Corrosion Inhibitor) ntawv los yog PE zaj duab xis los tiv thaiv oxidation thiab deg paug. Tom qab ntawd cov khoom tau muab khi ruaj khov thiab cushioned nrog cov ntawv tsis muaj dej tsis muaj dej corrugated thiab ntug tiv thaiv. Cov pob khoom tiav tau muab tso rau hauv plywood crates, hnyav - lub thawv ntawv thawv, los yog ntim rau hauv cov dej noo- pov thawj PVC zaj duab xis ntawm pallets, nrog cov ntawv ntshiab, ruaj khov rau kev tuav thiab kev txheeb xyuas. Rau kev thauj mus los thoob ntiaj teb hauv hiav txwv, peb muab IPPC- ntawv pov thawj fumigation ntoo rooj plaub lossis seaworthy export crates, kom ntseeg tau tias koj daim ntawv xaj tuaj txog nyab xeeb thiab npaj tau-rau- siv cov xwm txheej, txawm tias qhov chaw nyob.
